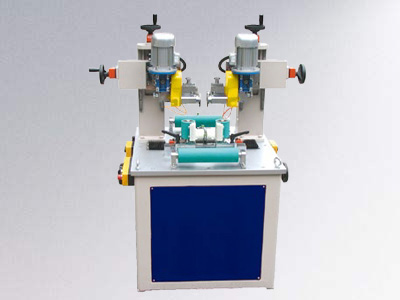

Knurling/Strip Insertion Machine
Service line

400-1088-778 / 0757-85588578

JYT.G240

Model
JYT.G240
Profile Cross Section (Maximum) 240 × 180 mm
Feeding Speed 0 ~ 80 m/min
Diameter of Reamer
Φ80 mm
Adjustable Range of Reamer Height
0 ~ 180 mm
Width
0 ~ 240 mm
Air Pressure
0.6 MPa
Total Power
1.50 kW
Voltage
380 V
Dimension (L*W*H)
1280 × 840 × 1510 mm
Weight
680 kg Approx.

NOTES: Customized design according to customers’ demand. These parameters are for conventional configuration. The actual parameters of the equipment are subject to the ex- factory products. Please provide clear indication in the contract for any special requirements.

JYT.G300

Model
JYT.G300
Profile Cross Section (Maximum) 400 × 300 mm
Feeding Speed 0 ~ 80 m/min
Diameter of Reamer
Φ80 mm
Adjustable Range of Reamer Height:0 ~ 300 mm Width:0 ~ 400 mm
Air Pressure
0.6 MPa
Total Power
1.55 kW
Voltage
380 V
Dimension (L*W*H)
1470 × 900 × 1660 mm
Weight
800 kg Approx.

NOTES: Customized design according to customers’ demand. These parameters are for conventional configuration. The actual parameters of the equipment are subject to the ex- factory products. Please provide clear indication in the contract for any special requirements.
